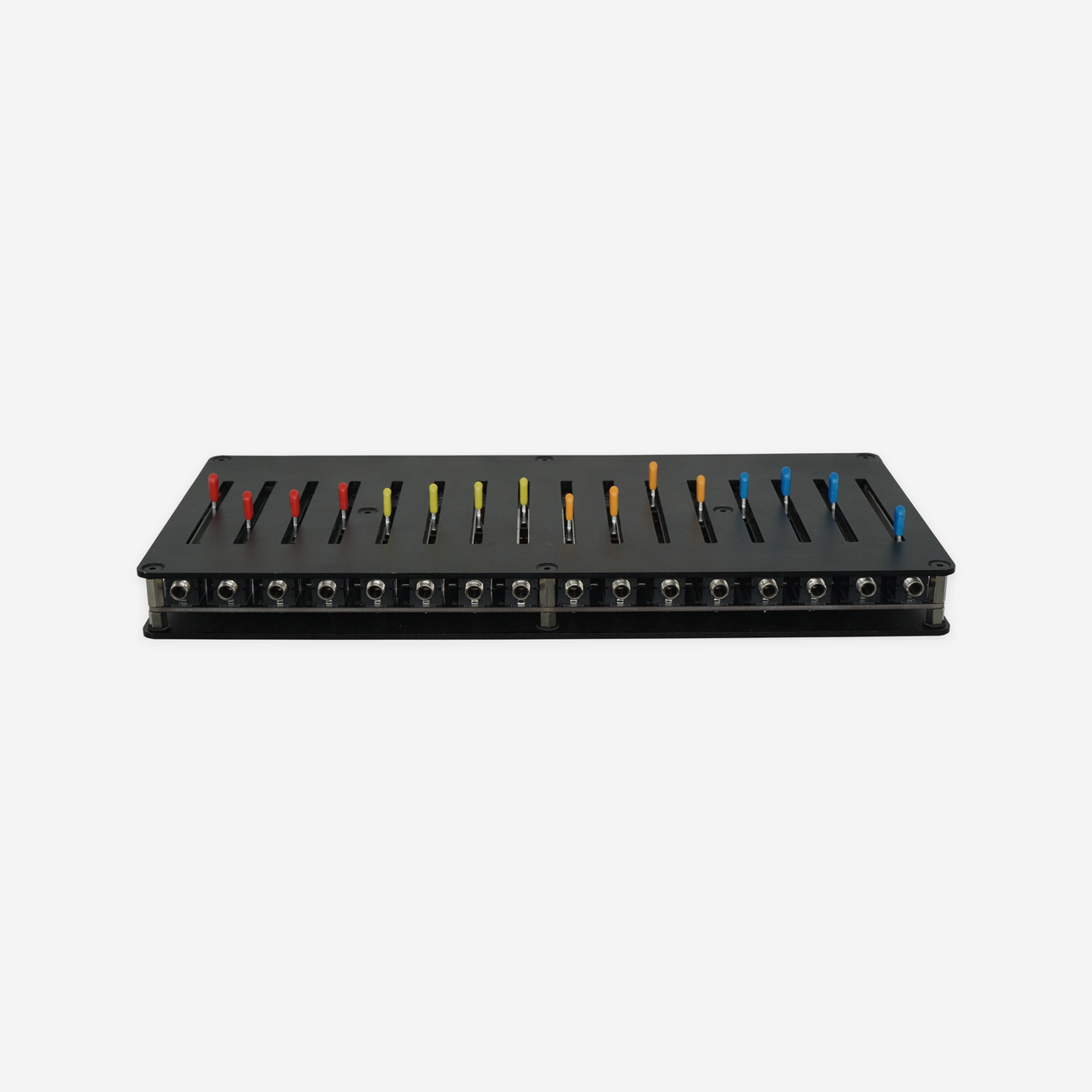

Silver prototype pictured is for illustrative purposes, finished units will be black, anodised, milled aluminium with bevelled edges. The clean top panel devoid of screw holes will be maintained. We expect to receive our panels mid December so if pre Christmas international shipping is desired we recommend selecting DHL Express, if there is no rush, just standard international postage with Royal Mail Tracked.

16nx is a refined, evolution of the 16n Faderbank used to control electronic musical instruments and devices.

Hand built by Big T Music.

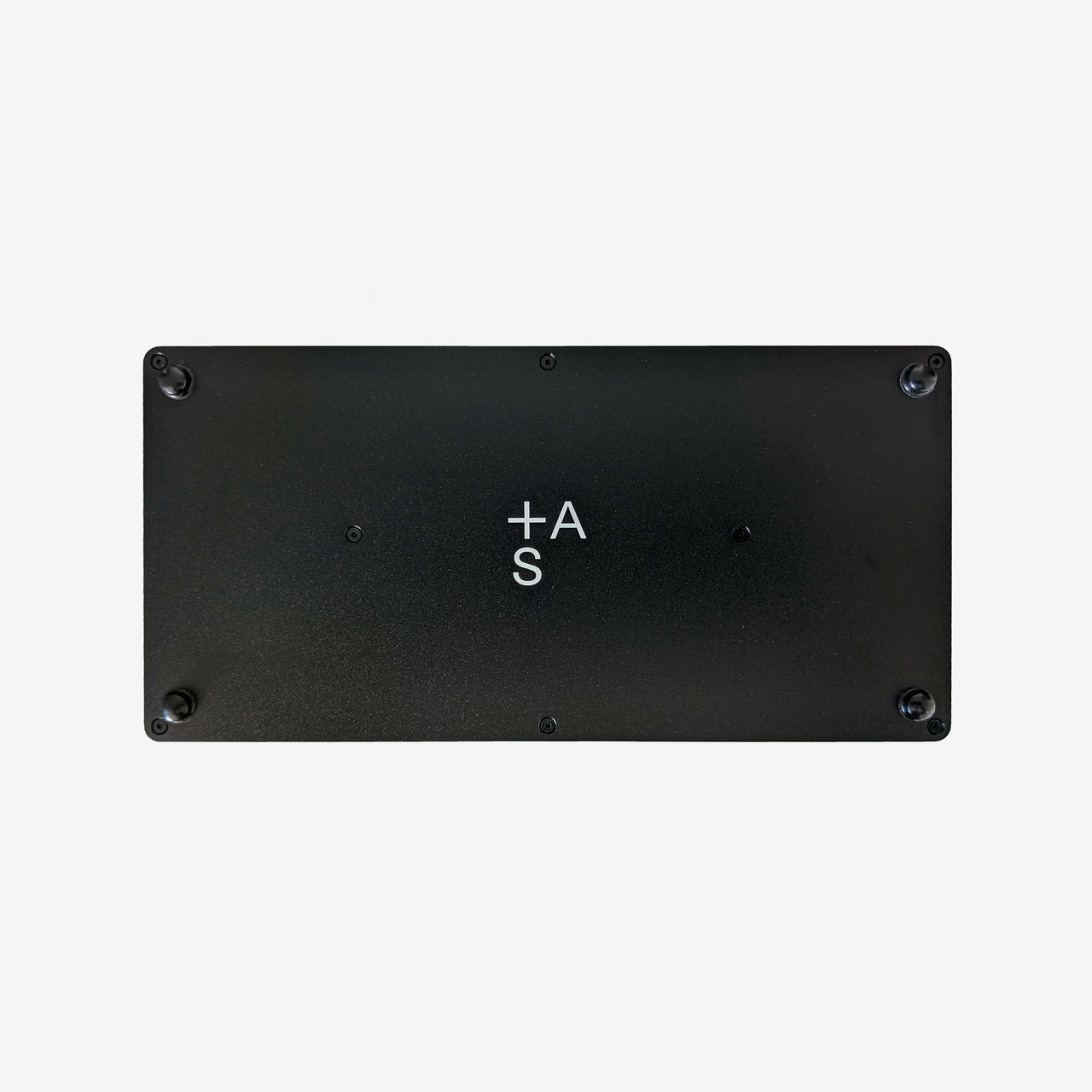

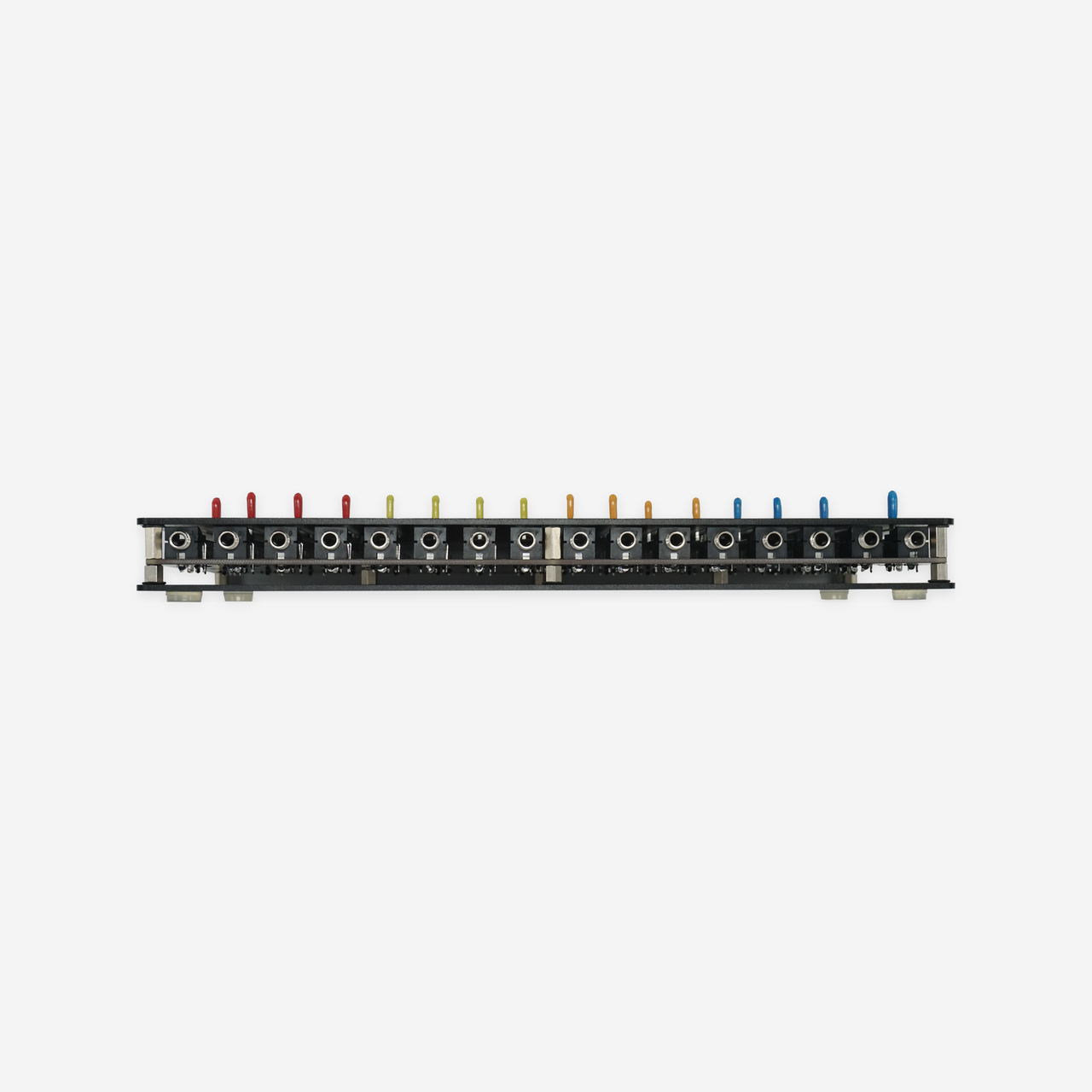

Each smooth as silk Alps 60mm fader can send MIDI data through both USB and 3.5mm stereo jack simultaneously, CV (0-5V) through sixteen dedicated top mounted jacks, or I2C data through TRS jack (pull up resistors can be requested depending on desired I2C config). Configurable via a handy Chrome based editor. Custom design Big T Music branded milled, bevelled and anodised black aluminium body with Buchla Music Easel style slider caps. Welded standoffs to remove all screw holes from top panel for a beautifully minimal look. Improved USB C port connectivity for increased robustness. Two year warranty as standard.

If you require 0 to +10V or -5 to +5V CV outputs, check out the new 6hp partner module SHIFTY.

For any 16nx related queries, please contact gareth@slateandash.com.
